Home > Products > Ball Valve > Solder Brass Ball Valve with Iron Handle

Solder Brass Ball Valve with Iron Handle

Product Description

1. Product features and application of Solder Brass Ball Valve
Solder Brass Ball Valve with Iron Handle

  1. Heavy-duty design for higher pressur
  2. Forged brass
  3. Straight pattern ,Angle pattern
  4. Port: 2-way,  3-way (port)
  5. Connection way :Solder end connection . Female Thread Connections Comply With ISO228 (BS2779), Other optional connection way : Male threaded ,solder and PPR connection.
  6. Handle type : Lever Handle: 1/4"-2"| Butterfly Handle 1/2"-2"
  7. Surface color
Chromed PlatedNickel PlatedZinc PlatedBrass color
   Yes
  1. Normal pressure: 1.6MPa
  2. W. T. -10 to 110°C
  3. Working medium: water, oil, gas;
  4. Investment Soldering
  5. Size: 1/2" - 2
  6. Brass ball.  Stainless steel ball is available.
  7. CSA approved
  8. Certificate : CE ,SGS ,ISO9001
  9. OEM

2. Material specifications of Solder Brass Ball Valve
No.Part  NameMaterial
1BodyBrass
2BonnetBrass
3SeatPTFE
5StemBrass
6PackingPTFE
7NutIron
8HandleIron

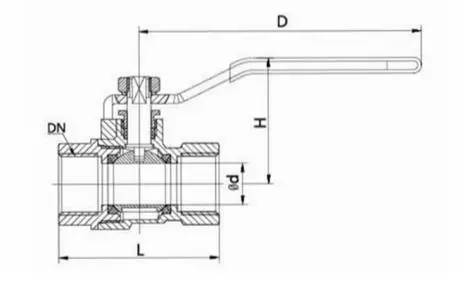

3. Dimension of Solder Brass Ball Valve
DN(mm)SIZE(inch)L(mm)d(mm)H(mm)D(mm)
151/2"53144386
203/4"60194792
251672353.5104
3277.52961118
40843573.5135.5
502944383.5145

4. Product introduction of Solder Brass Ball Valve
Solder brass ball valve is made of forged brass and operated with level handle, easy to open and close, widely used for plumbing, heating, and pipelines. Solder brass ball valve is widely used in fluid control system for building and plumbing like water,oil, and other non-corrosive liquid. Pressure rating is 1.6Pa, Maximum working temperature is -10ºC.



About us
Solder Brass Ball Valve with Iron Handle


Zhejiang Huibo Valve Technology Co., Ltd., is a leading manufacturer/supplier of valve industry with more than 25 years experiences, specialized in HAVC system parts and Brass Valve fields. Huibo valve have its own factory located in the brass valve town of China -Yuhuan county, Zhejiang province.

Now as the top manufacturer of high quality HAVC system parts and brass valve, our main products cover brass Manifold , thermostatic Radiator Valve, manual radiator valve, motorized valve, ball valve, Gate Valve, Gas Valve, Check Valve, Brass Fittings and so on with more than 40 series and 2000 varieties.

Brass manifold and thermostatic radiator valves for HAVC system are widely used in floor heating system ,radiant heat system and other heating systems. While brass valve series including ball valve, motorized valve, gate valve ,check valve,three way valve and etc. are widely used in civil industry .

The company always emphasizes quality, stresses integrity, and regards quality as the foundation for the survival and development of the company. We Huibo valve adhere to the principle of"integrity-based, innovation, pragmatic cooperation and mutually beneficial win-win", welcome old and new customers at home and abroad working together hand in hand, striving for research and development to achieve our mutual benefits.

Production Line
Solder Brass Ball Valve with Iron Handle
Our Factory
Solder Brass Ball Valve with Iron Handle
Certificate

Solder Brass Ball Valve with Iron Handle


Our company


Zhejiang Huibo Valve Technology Co., Ltd., is a leading manufacturer/supplier of valve industry with more than 25 years experiences, specialized in HAVC system parts and brass valve fields. Huibo valve have its own factory located in the brass valve town of China -Yuhuan county, Zhejiang province. As such, we took a good advantage on integration the resources of valve industry to get a strong competitive ability.

Now as the top manufacturer of high quality HAVC system parts and brass valve, our main products cover brass manifold, thermostatic radiator valve, manual radiator valve, motorized valve, ball valve, gate valve, gas valve, check valve, brass fittings and so on with more than 40 series and 2000 varieties.

Solder Brass Ball Valve with Iron Handle





Contact us if you need more details on Ball Valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Valve、Brass Ball Valve. If these products fail to match your need, please contact us and we would like to provide relevant information.
